Undertaker W24
Undertaker W24
If you want to kill it all, on one board, call in the Undertaker. The Undertaker has a blunted nose and tail, MOD 2 Core, M Hybrid Camber profile, and a three-stage side cut, delivering the rider a skate-inspired all-conditions weapon. Snowboard graphic by NICK DIRKS.
151, 154, 157, 160
Bend: Modi M Camber
Shape: Long Nose Twin
Wood Core: MOD 2
Core Profile: Twin Wave Form
Base: Premium Racing
Tip Tech: Regular Tip
Fiberglass: Liten
Layer Strings: V2 Carbon
Sidewall: Bubblegum Walls
Tech Specs
A Long Nose Twin original from SIMS, the Undertaker has a slightly longer nose for float on a deep day with a flat-kick tip and tail for smooth buttering and pressing on obstacles. Our MODI “M” Camber is loose and catch-free at low speeds, and powerful underfoot when pointing it. The Undertaker’s three-stage side cut provides a mix of tight radius turning characteristics and incredible stability when not turning.
The Undertaker is built on SIMS MOD 2 core, poplar wood and Paulownia wood, native to North America, running tip-to-tail. The core profile is enhanced with SIMS Twin Wave Form technology. A thickened wood core under the binding hole patterns provides greater shock absorption and quicker edge-to-edge response from the slight increase in leverage. Our V2 Carbon Layup loads the tip and tail for max power and pop, and Bubblegum Sidewalls decrease chatter and offer unparalleled durability. Complete with a Premium Racing Base for all the speed you need.
Spec |
151 |
154 |
157 |
160 |
RUNNING LENGTH |
1105 |
1135 |
1165 |
1195 |
EFFECTIVE EDGE |
1125 |
1155 |
1185 |
1215 |
NOSE/TAIL WIDTH |
288 / 288 |
291 / 291 |
294 / 294 |
298 / 298 |
NOSE/TAIL LENGTH |
210 / 195 |
210 / 195 |
210 / 195 |
210 / 195 |
WAIST WIDTH |
248 |
251 |
254 |
258 |
STANCE RANGE |
470-590 |
490-610 |
510-630 |
520-640 |
SET BACK |
0 |
0 |
0 |
0 |
SIDECUT RADIUS (M) |
10 / 7.2 / 10 |
11.5 / 7.5 / 11.5 |
12.5 / 7.8 / 12.5 |
13.5 / 8.1 / 13.5 |
CAMBER PROFILE
Modi M Camber
A dynamic blend of M POP and Transform Camber, this proprietary technology features a flat rocker section between the feet within a double camber design, the combination delivers next-level control for jib and park-focused riding.
WOOD CORE
MOD 2
This Core combines poplar wood and Paulownia wood native to North America. Paulownia wood is the second lightest, strongest and supple of the woods commonly used in Snowboarding.
CORE PROFILE
Twin Wave Form
This proprietary design adds depth and dimension to the wood core beneath the feet for focused drive, flex, and control.
BASE
Premium Racing
This base utilizes a high-density, high-speed base material chosen for its molecular weight, which delivers unrivaled speed, excellent wear resistance, and increased wax permeability.

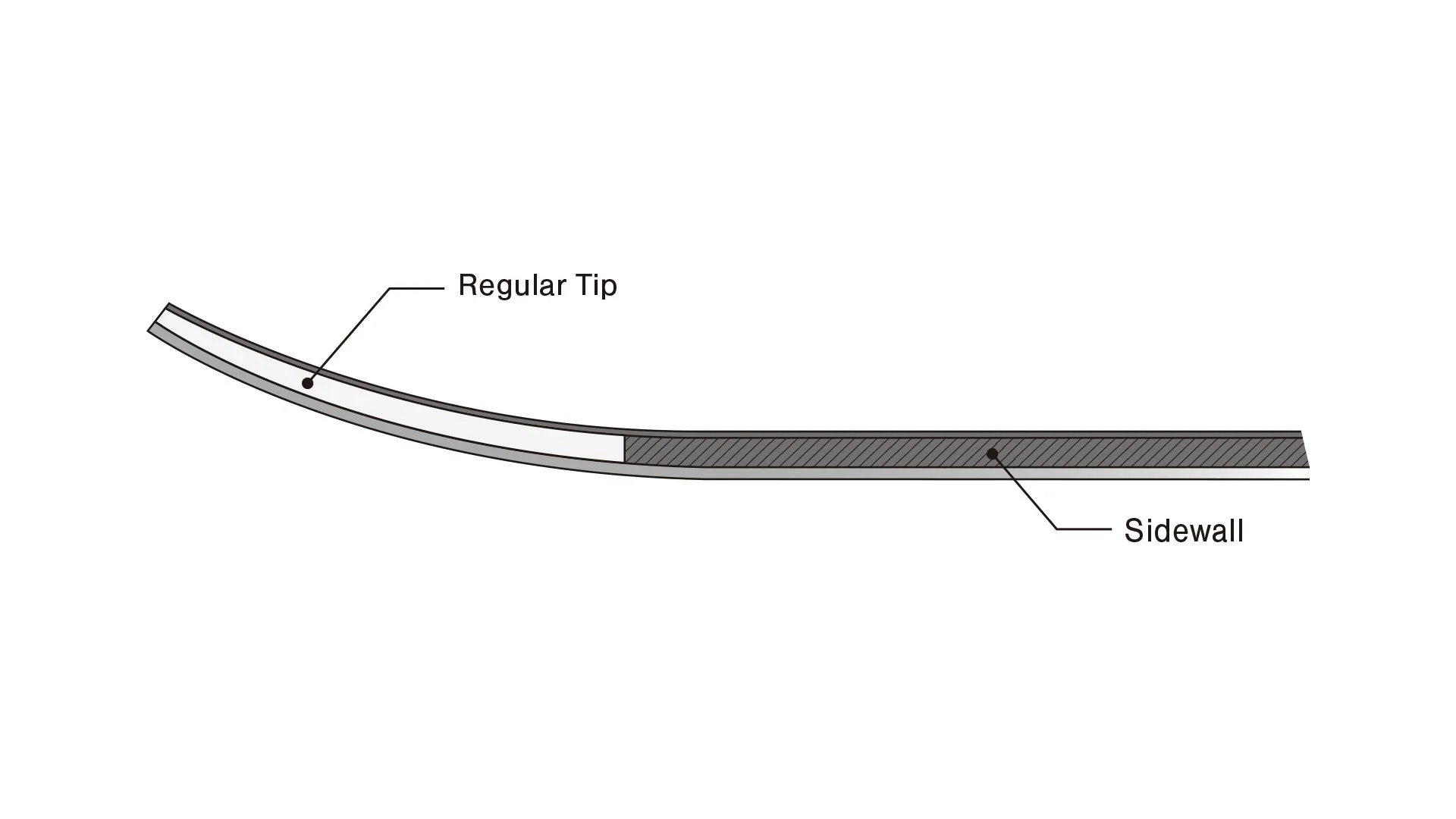

TIP TECHNOLOGY
Regular Tip
A traditional construction that features full wood core content from tip-to-tail for smooth-flexing stability and durability.
FIBERGLASS LAMINATE
Liten
A simple and proven fiberglass matrix comprised of 0º Standard fiberglass overlaid with 90º Light glass; balancing flexibility and torsional rigidity for a springy and pressable, smooth-flexing ride.
CARBON LAY-UP
V2 Carbon
A pair of V-shaped carbon layers that point outward from the stance pattern, this matrix uses carbon to load pop in the tips while sustaining power between the contact points.
